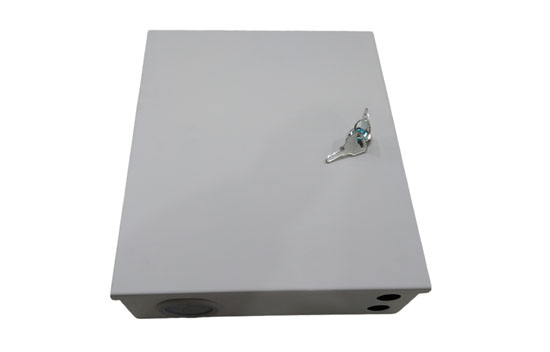

24fo outdoor fiber optic terminal box OTB-SP16
Product specifications
Model: OTB-SP16?
Dimension(mm): 305x254x80
Material: cold roll steel
Adapter port: 24pcs SC simplex
Max. capacity: 24 fibers
Max. qty of splice tray: 4pcs
Max. capacity of splice tray:? 6 fibers
Color: Grey RAL7035 or black?
Can load 1pc PLC 1:8 or 1:16 steel tube type splitter
Application: outdoor wall mounted

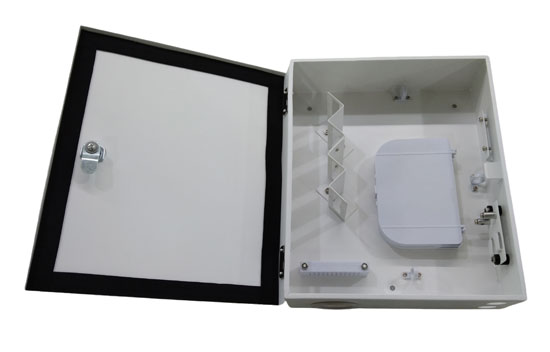

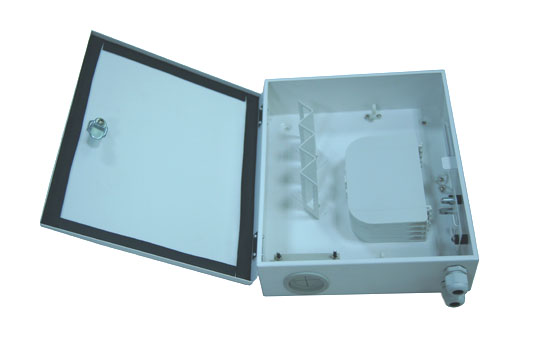

Product details
Fiber optic terminal box is available for the distribution and terminal connection of various kinds of optical fiber system, especially suitable for mini-network terminal distribution, in which the optical cables, patch cords or pigtails are connected. OTB-SP16 can load max. 24 SC simplex adpaters for 24 fiber connection and ditribution.?
Features:?
Used for indoor and outdoor wall mount, the inside and outside of box is static powder spraying,nice and compact appearance.
It can load splitter,max for 16way,if load with pigtail,can be 24 fibers.?
The adaper is for angel fixing,smooth swirl of pigtail,large radius of curvature, it could effectivly reduce the loss of fiber transmission.?
SC,FC,ST, LC and another adapter panel can be interchangable.
The splice tray can be stackable,it is convenient for increase,decrease,and operation.
