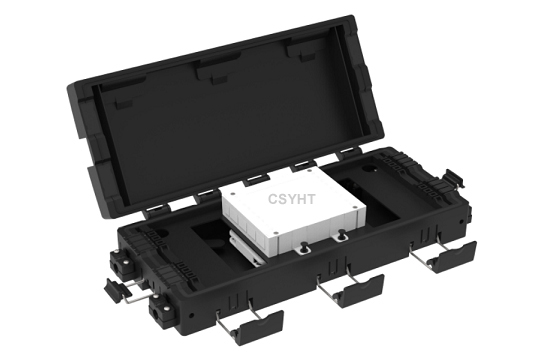

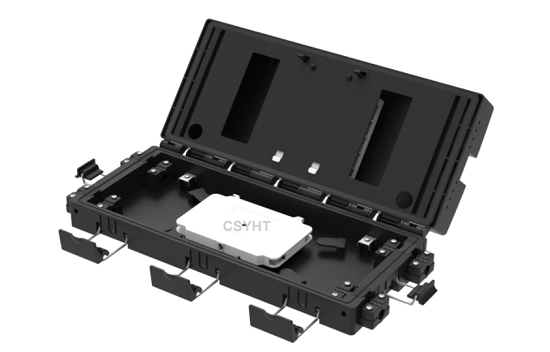

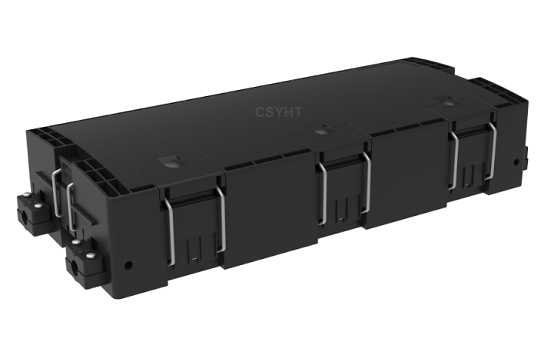

FTTH box BP039
Product specifications
Model: BP039
(Internal model: OTB-P039)
Dimension(mm): 413.2X180.2X81
Material: ABS plastic?
Capacity: 24 fibers?
Splice tray qty: 1pc OST-050?
Color: black?
Cable port: 4 entry port 6-8mm & 16 drop cable port 3*2mm
? ? ? ? ? ? ? ? ? ? support cable entry without cutting?
Application: outdoor aerial hanged??
Product details

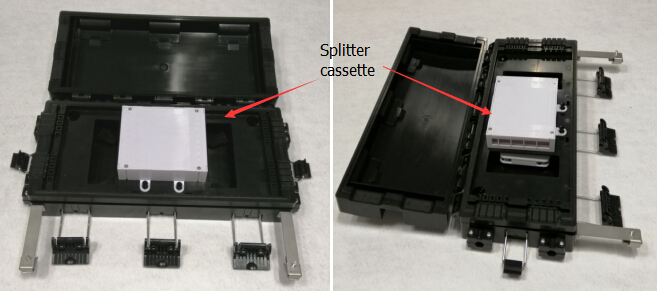

OTB-P039 is a plastic outdoor aerial hanged mounted fiber optic terminal box. It has two layer space. The upper space load a plastic splitter cassette that load PLC steel tube type splitter 1:2, 1:4, 1:8, 1:16; also it support 16 drop cable output.

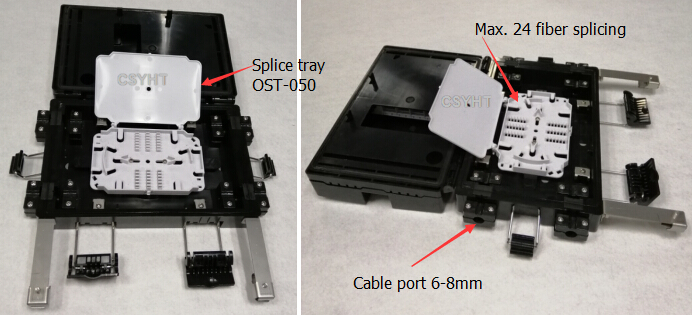

The lower space load 1pc fiber optic splice tray OST-050 support max. 24 fibers splicing and connection. It has 4 cable port 6-8mm.
Similar model: OTB-P041
The difference between OTB-P039 and OTB-P041:
