FAP BP040
Product specifications
Model: BP040
(Internal model: OTB-P040)
Dimension(mm): 303.15X198.4X72
Material: ABS plastic?
Capacity: 12-24 fibers?
Splice tray qty: 1 pc OST-050
Color: black?
Cable port: 4 entry port 6-8mm & 8 drop cable port 3x2mm
? ? ? ? ? ? ? ? ? ? support cable entry without cutting?
Application: IP65, outdoor aerial hanged??
Product details

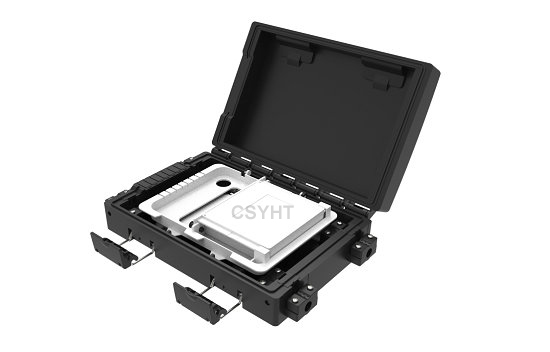

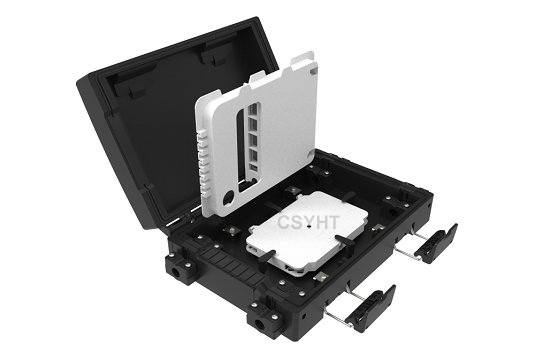

OTB-P040 is a plastic outdoor aerial hanged mounted fiber optic terminal box. It has two layer space. The upper space load a plastic splitter cassette that load PLC steel tube type splitter 1:2, 1:4, 1:8.
The lower space load 1pc fiber optic splice tray OST-050 support max. 24 fibers splicing and connection.

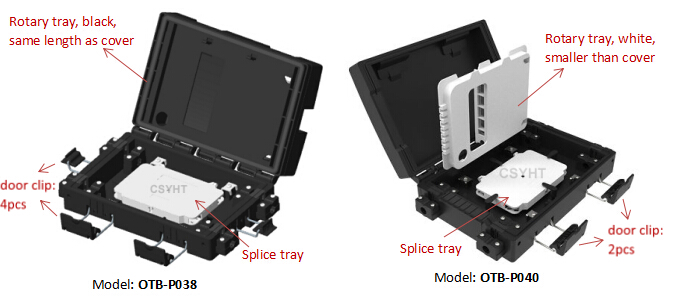

Similar Model: OTB-P038
The difference between OTB-P038 and OTB-P040:
