Sliding 1U 144 cores MPO patch panel HODF-RS144-1U

Product specifications

Model:  HODF-RS144-1U
Dimension(mm): 482x493.2x44.3
Material: Cold roll steel
Max. capacity: 144 fibers
With 3pcs sliding trays, load 12pcs MPO cassettes HD-08
MPO cassette HD-08 can load 1pc MPT/MTP adapters & 3pcs LC quad or 3pcs SC duplex adapters
Color: Grey white or black
Sliding type, 19inch rack mounted application

Product details

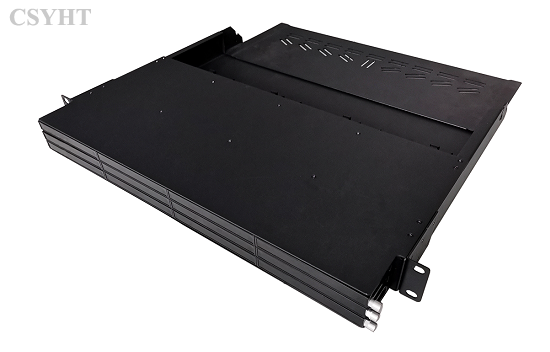

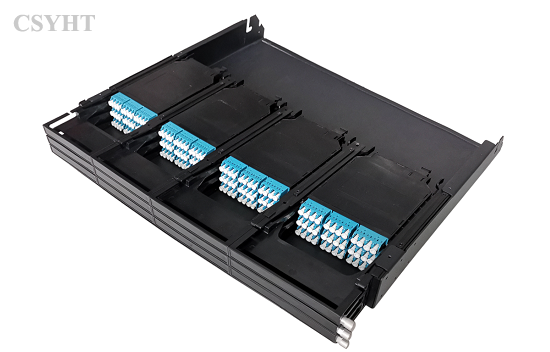

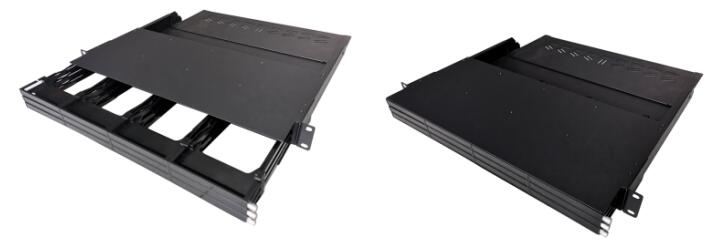

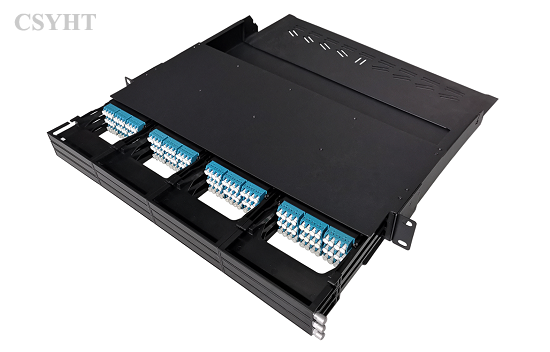

HODF-RS144-1U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying. It is sliding type 1U height for 19inch rack mounted application. It has 3pcs plastic sliding trays, each sliding tray is with 4pcs MPO cassettes. It can load 12pcs MPO cassettes HD-08 for max. 144 fiber connection and distribution. There are cable management plate with fixing holes at back side of patch panel.
