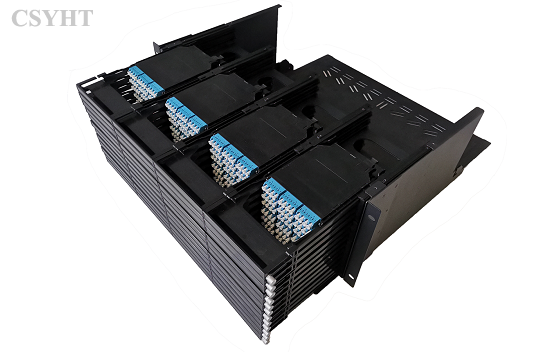

4U 576fo MPO fiber optic patch panel HODF-RS576-4U
Product specifications
Model: HODF-RS576-4U
Dimension(mm): 482x493.2x174.2
Material: Cold roll steel
Max. capacity: 576 fibers
With 12pcs sliding trays, load 48pcs MPO cassettes HD-08
MPO cassette HD-08 can load 1pc MPT/MTP adapters & 3pcs LC quad or 3pcs SC duplex adapters
Color: Grey white or black
Sliding type, 19inch rack mounted application
Product details

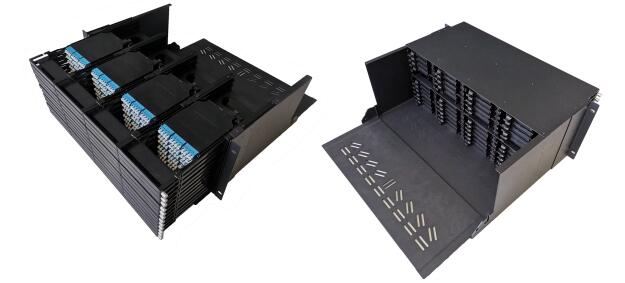

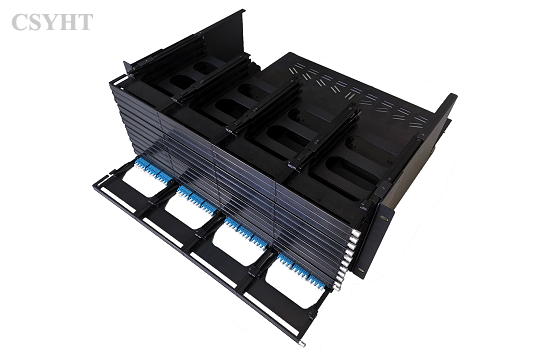

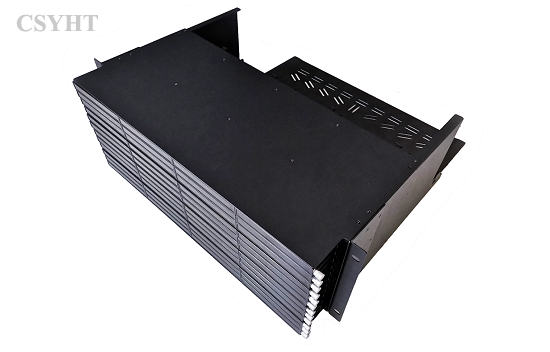

HODF-RS576-4U is a high density fiber optic patch panel that made by high quality cold roll steel material, the surface is with electrostatic powder spraying. It is sliding type 4U height for 19inch rack mounted application. It has 12pcs plastic sliding trays, each sliding tray is with 4pcs MPO cassettes. It can load 48pcs MPO cassettes HD-08 for max. 576 fiber connection and distribution. There are cable management plate with fixing holes at back side of patch panel.
